You will need:
- OpenRefine source code
- Java JDK (Get OpenJDK from here.)
- Apache Maven (OPTIONAL)
- A Unix/Linux shell environment OR the Windows command line
From the top level directory in the OpenRefine application you can build, test and run OpenRefine using the
./refine shell script (if you are working in a *nix shell), or using the
refine.bat script from the Windows command line. Note that the
refine.bat on Windows only supports a subset of the functionality, supported by the
refine shell script. The example commands below are using the
./refine shell script, and you will need to use
refine.bat if you are working from the Windows command line.
You must install JDK and set the JAVA_HOME environment variable (please ensure it points to the JDK, and not the JRE).
- On Windows 10, click the Start Menu button, type
env, and look at the search results. Click . (If you are using an earlier version of Windows, use the “Search” or “Search programs and files” box in the Start Menu.)
- Click Advanced window. at the bottom of the
- In the Environment Variables window that appears, click and create a variable with the key
JAVA_HOME. You can set the variable for only your user account, as in the screenshot below, or set it as a system variable - it will work either way.
- Set the
Valueto the folder where you installed JDK, in the format
D:\Programs\OpenJDK. You can locate this folder with the button.
First, find where Java is on your computer with this command:
Check the environment variable
To set the environment variable for the current Java version of your MacOS:
Or, for Java 13.x:
export JAVA_HOME="$(/usr/libexec/java_home -v 13)"
Enter the following:
sudo apt install default-jre
This probably won’t install the latest JDK package available on the Java website, but it is faster and more straightforward. (At the time of writing, it installs OpenJDK 11.0.7.)
First, extract the JDK package to the new directory
sudo mkdir -p /usr/lib/jvmsudo tar -x -C /usr/lib/jvm -f /tmp/openjdk-14.0.1_linux-x64_bin.tar.gz
Then, navigate to this folder and confirm the final path (in this case,
usr/lib/jvm/jdk-14.0.1). Open a terminal and type
sudo gedit /etc/profile
In the text window that opens, insert the following lines at the end of the
profile file, using the path above:
JAVA_HOME=/usr/lib/jvm/jdk-14.0.1PATH=$PATH:$HOME/bin:$JAVA_HOME/binexport JAVA_HOMEexport PATH
Save and close the file. When you are back in the terminal, type
Exit the terminal and restart your system. You can then check that
JAVA_HOME is set properly by opening another terminal and typing
It should show the path you set above.
OpenRefine's build script will download Maven for you and use it, if not found already locally installed.
If you will be using your Maven installation instead of OpenRefine's build script download installation, then set the
MVN_HOME environment variable. You may need to reboot your machine after setting these environment variables. If you receive a message
Could not find the main class: com.google.refine.Refine. Program will exit. it is likely
JAVA_HOME is not set correctly.
Ensure that you set your
MAVEN_HOME environment variable, for example:
NOTE: You can use Maven commands directly, but running some goals in isolation might fail (try adding the
compile test-compile goals in your invocation if that is the case).
To see what functions are supported by OpenRefine's build system, type
To build the OpenRefine application from source type:
./refine clean./refine build
Since OpenRefine is composed of two parts, a server and a in-browser UI, the testing system reflects that:
- on the server side, it's powered by TestNG and the unit tests are written in Java;
To run all tests, use:
this option is not available when using refine.bat
If you want to run only the server side portion of the tests, use:
If you are running the UI tests for the first time, you must go through the installation process.
If you want to run only the client side portion of the tests, use:
./refine ui_test chrome
To run OpenRefine from the command line (assuming you have been able to build from the source code successfully)
By default, OpenRefine will use refine.ini for configuration. You can copy it and rename it to
refine-dev.ini, which will be used for configuration instead.
refine-dev.ini won't be tracked by Git, so feel free to put your custom configurations into it.
The Refine build system uses Apache Ant to automate the creation of the installation packages for the different operating systems. The packages are currently optimized to run on Mac OS X which is the only platform capable of creating the packages for all three OS that we support.
To build the distributions type
./refine dist <version>
where 'version' is the release version.
OpenRefine' source comes with Maven configuration files which are recognized by Eclipse if the Eclipse Maven plugin (m2e) is installed.
At the command line, go to a directory not under your Eclipse workspace directory and check out the source:
git clone https://github.com/OpenRefine/OpenRefine.git
In Eclipse, invoke the
Import... command and select
Existing Maven Projects.

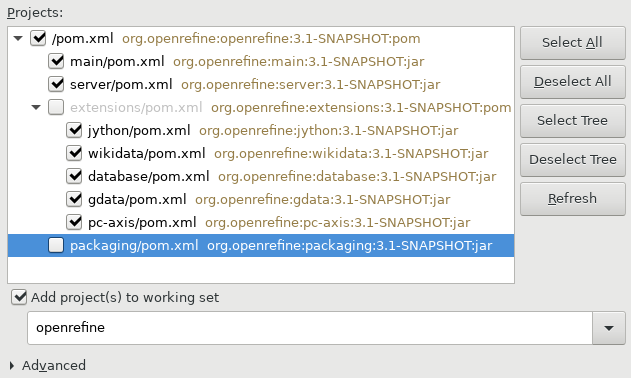

Choose the root directory of your clone of the repository. You get to choose which modules of the project will be imported. You can safely leave out the
packaging module which is only used to generate the Linux, Windows and MacOS distributions.
To run and debug OpenRefine from Eclipse, you will need to add an execution configuration on the
Right click on the
server subproject, click
Run as... and
Run configurations... and create a new
Maven Build run configuration. Rename the run configuration
OpenRefine. Enter the root directory of the project as
Base directory and use
exec:java as a Maven goal.
This will add a run configuration that you can then use to run OpenRefine from Eclipse.
You can run the server tests directly from Eclipse. To do that you need to have the TestNG launcher plugin installed, as well as the TestNG M2E plugin (for integration with Maven). If you don't have it, you can get it by installing new software from this update URL http://dl.bintray.com/testng-team/testng-eclipse-release/
Once the TestNG launching plugin is installed in your Eclipse, right click on the source folder "main/tests/server/src", select
Run As ->
TestNG Test. This should open a new tab with the TestNG launcher running the OpenRefine tests.
It is possible to analyze test coverage in Eclipse with the
EclEmma Java Code Coverage plugin. It will add a
Coverage as… menu similar to the
Run as… and
Debug as… menus which will then display the covered and missed lines in the source editor.
Here's an example of putting configuration in Eclipse for debugging, like putting values for the Google Data extension. Other type of configurations that can be set are memory, Wikidata login information and more.
At the command line, go to a directory you want to save the OpenRefine project and execute the following command to clone the repository:
git clone https://github.com/OpenRefine/OpenRefine.git
Then, open the IntelliJ idea and go to
file -> open and select the location of the cloned repository.
It will prompt you to add as a maven project as the source code contains a pom.xml file in it. Allow
auto-import so that it can add it as a maven project.
If it doesn't prompt something like this then you can go on the right side of the IDE and click on maven then, click on
reimport all the maven projects that will add all the dependencies and jar files required for the project.
After this, you will be able to properly build, test, and run the OpenRefine project from the terminal. But if you will go to any of the test folders and open some file it will show you some import errors because the project isn't yet set up at the module level.
For removing those errors, and enjoying the features of the IDE like ctrl + click, etc you need to set up the project at the module level too. Open the different modules like
main as a project in the IDE. Then, right-click on the project folder and open the module settings.
In the module settings, add the source folder and test source folders of that module.
Then, do the same thing for the main OpenRefine project and now you are good to go.
